Product Description:
Features:

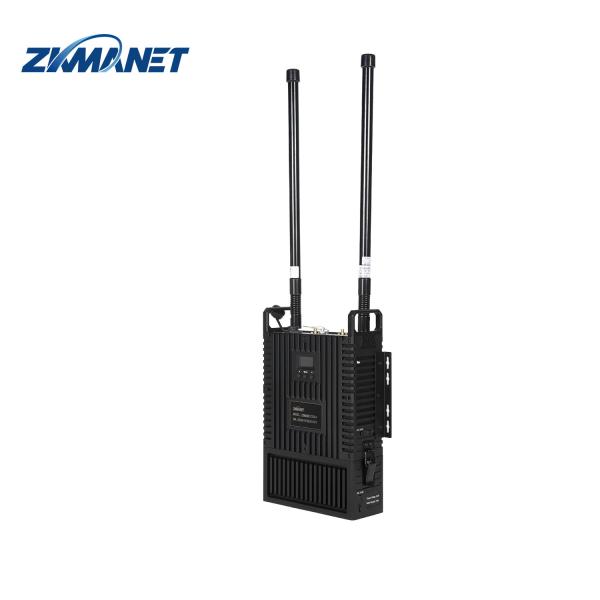

- Product Name: Personal Communication Equipment
- Application: Data Transmission
- Power Consumption: ≤95W
- Frequencies: 1300-1500MHz (70MHz-6GHz Customizable)
- FHSS: Optional (>1000 Hop/s)
- Output Power: Hight Power, 1dBm Step Adjustable
- Keywords: UAV UGV Datalink, MESH Radio, Backpack Radio
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Robotic Data Link |
| Range |
Long Range (customizable) |
| FHSS |
Optional (>1000 Hop/s) |
| Battery Life |
6 Hours (13Ah) |
| Frequencies |
1300-1500MHz (70MHz-6GHz Customizable) |
| Throughput |
56Mbps |
| Output Power |
Hight Power, 1dBm Step Adjustable |
| Application |
Data Transmission |
| Compression |
H.265 |
| IFS |
Optional |
| Working Voltage |
16.8VDC (12-24V) |
| Other Applications |
UAV Video Transmitter, LTE RRU |
Applications:
The ZKMANET3261 uses a COFDM module to ensure that your communication is always secure and reliable. Its H.265 compression feature helps to reduce the amount of bandwidth used during communication, making it ideal for situations where the bandwidth is limited. The channel bandwidth of this product is 2.5M/5M/10M/20MHz, with the option of 40MHz.
The ZKMANET3261 is perfect for use in emergency situations, such as natural disasters, where traditional communication methods may be disrupted. It can also be used in remote areas, where there is limited or no cellular coverage. This product can be used by first responders, emergency personnel, and military personnel to communicate securely and effectively.
The ZKMANET3261 can also be used in a variety of other scenarios, such as in sports broadcasting, where you need to transmit real-time video and audio from the field to the studio. It can also be used in live events such as concerts, where you need to transmit high-quality audio and video signals over long distances.
Finally, the ZKMANET3261 can be used in the telecommunications industry as an LTE RRU or 4G-LTE base station. Its versatility and reliability make it an ideal choice for telecom operators who need to provide high-speed data services in remote or hard-to-reach areas.
